Product details

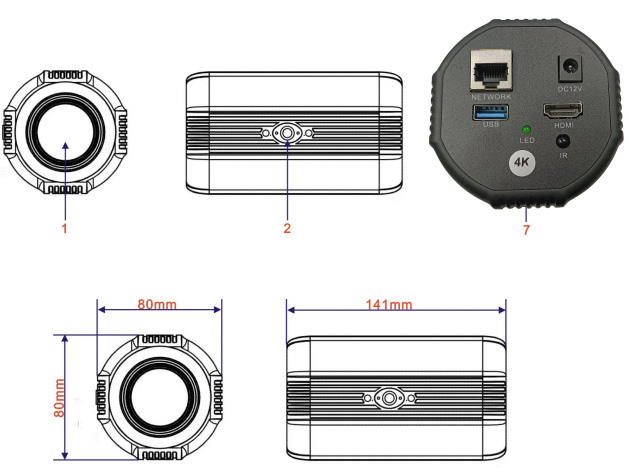

1：10Magnifying lens2：1/4British screws3:DC12Vmouth4: Internet port
5：HDMIInterface6：USB3.0Interface7: Power indicator light
Product features:
Full HD Image: Equipped with a 1/2.8 inch 8-megapixel high-quality image sensor (SONY IMX415), the maximum resolution can reach 3840 × 2160, and the USB3.0 HDMI output frame rate can reach up to 30 frames per second, presenting clear and realistic high-definition videos, vividly showing the expressions and actions of characters.
Optical zoom lens: adopts 10x optical zoom and 58 ° wide-angle lens.
Rich video interfaces: Supports HDMI (4K30), USB 3.0 (4K30), RJ45 video output;
Leading automatic focusing technology: using advanced focusing algorithms to enable the lens to quickly, accurately, and stably focus.
Horizontal and Vertical Screen: Supports switching between horizontal and vertical screen output modes through menus and shortcut keys, better meeting customers' playback needs for horizontal and vertical screens.
Professional Image Style: Supports beauty and jewelry style modes, adjusting the best image effects for live streaming scenes.
Multiple video compression standards: The interface supports MJPG, H264, YUY2, and NV12 video compression formats.
Low noise and high signal-to-noise ratio: Low noise CMOS effectively ensures ultra-high signal-to-noise ratio of camera videos; Advanced 2D and 3D noise reduction technologies are adopted to further reduce noise while ensuring image clarity.
Easy to use: No need to download drivers, USB output plug and play, with a convenient and concise user experience;
Technical parameters:
| parameter/Model number |
|
| Camera and lens parameters |
|
| image sensor |
1/2.8 SONY IMX415 Sensor |
| Effective pixels |
8 million, 16:9 SIGMISTAR268 |
| video signal |
HDMIOutput supported video formats: 4K@30fpsThe1080P@30fpsThe1080P@25fpsThe720P@60fpsThe720P@50fps； USB3.0Output supports video formats： YUY2/NV12support3840×2160@30fpsThe1280×720@30fpsThe1024×576@30fpsThe 960×540@30fpsThe800×448@30fpsThe640×360@30fpsThe640×480@30fpsThe320×176P30fps MJPEG/H.264support38402160@30fpsThe1280×720@30fpsThe1024×576@30fpsThe960×540@30fpsThe800×448@30fpsThe640×360@30fpsThe640×480@30fpsThe320×176@30fps |
| visual angle |
7°～ 58° |
| focal length |
f=5.76～56.09±5% |
| aperture |
F1.5 ～ F3.0 |
| Optical zoom |
10X |
| Minimum illuminance |
0.5Lux(F1.5, AGC ON) |
| Digital noise reduction |
2D&3D digital noise reduction |
| Super automatic noise reduction |
open/Close it |
| white balance |
automatic/Manual/One Click White Balance/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| focusing |
automatic/Manual/one click focusing; |
| exposure |
automatic/Manual |
| Backlight compensation |
open/Close it |
| Signal to noise ratio |
>50dB |
| Vertical screen switch |
open/Close it Dial switch |
| Minimum object distance |
30cm (wide angle) to 150cm (narrow angle) |
| Interface functionality and performance |
|
| Video output interface |
1-channel USB 3.0 interface: OneHDMIInterface OneRJ45 interface |
| Video compression format |
YUV、NV12、MJPG、H.264、 |
| Variable magnification control |
Wireless remote control (infrared signal) |
| control interface |
|
| Other parameters |
|||
| Working voltage and current |
Voltage |
The power adapter |
12V |
| USB |
5V |
||
| electric current |
The power adapter |
0.4A(max) |
|
| USB |
1A(max) |
||
| power waste |
10W(max) |
||
| Storage temperature |
-10℃～ 60℃ |
||
| Storage humidity |
20%～90% |
||
| working temperature |
-10℃～ 50℃ |
||
| Working humidity |
20%～80% |
||
| Size (width)X high X deep) |
141 mm×80mm×80mm |
||
| weight |
about0.65kg (including 1000g packaging) |
||
| Installation method |
Comes with1/4Screw holes, tripod installation |
||
| Usage environment |
indoor |
||
| Attached with the attachment |
Instruction manual, warranty cardUSB 3.0 cable, power adapter, wireless remote control |
||
