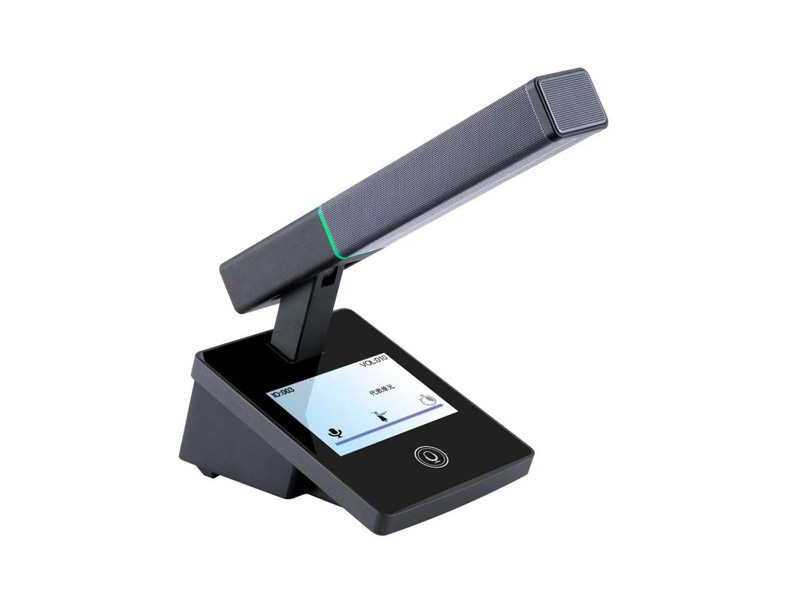

Product details

Functional features:

The equipment complies with the international standard IEC 60065

All metal shell, square pole design

● Adopting a highly sensitive and dynamic 14mm gold-plated capacitive pickup head

● Support switching between conference host related modes

● Support any microphone configuration as the chairman

The chairman unit and representative unit can be set arbitrarily

● Support one click mode conversion (in Chairman mode)

Adopting three damping zero pressure shaft technology to achieve stable and reliable support for the shaft, supporting more than 30000 non-destructive rotations

● High damping elastic suspension type sound head mounting bracket, effectively reducing desktop vibration and friction noise transmission of microphone tubes, etc

Three color light ring (standby red, chairman standby blue, power on green)

Each microphone can be independently adjusted for volume and timbre

TP fully bonded virtual touch button

TP fully laminated 3.5-inch display touch screen

● Binding role ID

● Automatically generate chairman buttons

● Unit screen display supports functions such as service, speech timing, volume adjustment, voting, time synchronization, etc

● Support automatic synchronization software, interference free button design, and screen display content can be delegated permissions by the software.

Effective pickup distance of 80cm or more

● Support hot swappable data recovery

● Press the button to turn on the light

Technical parameters:

● Radio head: Polarized capacitor sound head

● Directionality: Supercardiform

Frequency response: 20Hz~20000Hz

Signal to noise ratio: 74 dB, 1 kHz at 1 Pa

● Upper limit of input sound pressure: 128 dB SPL, 1 kHz at 1% T.H.D

Dynamic range: 106 dB, 1 kHz at Max SPL

Total harmonic distortion:<0.05%

Microphone sensitivity: -42dB

Impedance: 100 ohms

Working voltage: 24V DC ± 5%

Working current: 80mA ± 5%

● Connection method: junction box, T-shaped head, circular handle

● Connector: Large 6-core

Tail line length: 70cm

● Unit opening quantity: 1-8 optional

● Numbering function: Supports automatic and manual numbering

Installation method: desktop type
